Original price was: 8,500.00৳ .8,200.00৳ Current price is: 8,200.00৳ .
Conical Pole GI 3mm in Bangladesh is supplied by United Electronics for street lighting, solar street lighting, roads, industrial areas, commercial premises and infrastructure projects. Manufactured with a nominal 3mm steel wall thickness and galvanized surface protection, the pole is available in project-based heights and configurations. Contact United Electronics for specifications, price and quotation
Conical Pole GI 3mm in Bangladesh is a durable steel lighting pole solution supplied by United Electronics for street lighting, solar street lighting, roads, industrial areas, commercial premises, residential developments and infrastructure projects.
Manufactured with a nominal 3mm steel wall thickness and galvanized surface protection, this conical pole can be configured in different heights, dimensions and mounting arrangements according to customer and project requirements.
A conical pole features a tapered profile, with the cross-sectional dimensions gradually reducing from the lower section toward the top. This design provides a clean and professional appearance suitable for modern outdoor lighting installations.
Depending on the project, a 3mm GI Conical Pole can be configured with different pole heights, top and bottom dimensions, base plates, anchor bolts, lighting arms and mounting brackets.
United Electronics supplies Conical Pole GI 3mm in Bangladesh according to technical specifications, project requirements and installation conditions. Pole selection should consider the complete structural configuration rather than wall thickness alone. Important parameters include pole height, steel specification, pole dimensions, base plate, anchor bolts, lighting fixture, solar panel where applicable, foundation and environmental conditions.
The 3mm GI Conical Pole refers to a conical steel pole manufactured with a nominal wall thickness of 3 millimeters and a galvanized protective surface according to the applicable product specification.
Outdoor lighting poles are continuously exposed to rain, humidity, sunlight and other environmental conditions. Appropriate galvanizing helps protect the steel surface against corrosion and can improve suitability for long-term outdoor installation.
Where a project requires a particular galvanizing method, zinc coating thickness or technical standard, the exact requirement should be confirmed against the supplied pole specification. This is particularly important for government tenders and infrastructure projects.
Street lighting is one of the primary applications of a Conical Pole GI 3mm. Depending on the complete structural design, these poles can support compatible LED and AC street lighting fixtures.
Potential installation areas include roads, internal streets, industrial premises, factories, commercial areas, residential developments, educational institutions, parking facilities and other outdoor locations.
The correct pole height should be selected according to the road width, lighting fixture, required illumination, beam distribution and mounting arrangement. Pole-to-pole spacing should also be determined according to the lighting design and site requirements.
United Electronics supplies different street lighting products and pole solutions according to customer and project specifications.
A Conical Pole GI 3mm in Bangladesh can also be configured for compatible solar street lighting systems.
A complete solar street light system may include an LED light fixture, solar panel, rechargeable battery, MPPT or PWM solar charge controller, solar panel mounting structure and pole.
When a solar panel is installed on the pole, its dimensions and mounting arrangement create additional wind-exposed area. Pole height, solar panel size, mounting angle, lighting fixture and other equipment should therefore be considered when evaluating the complete structural design.
A 3mm wall thickness alone does not establish a particular wind resistance. Where a project specifies a wind speed or structural loading requirement, the complete pole configuration should be verified through appropriate structural calculations or supporting technical documentation.

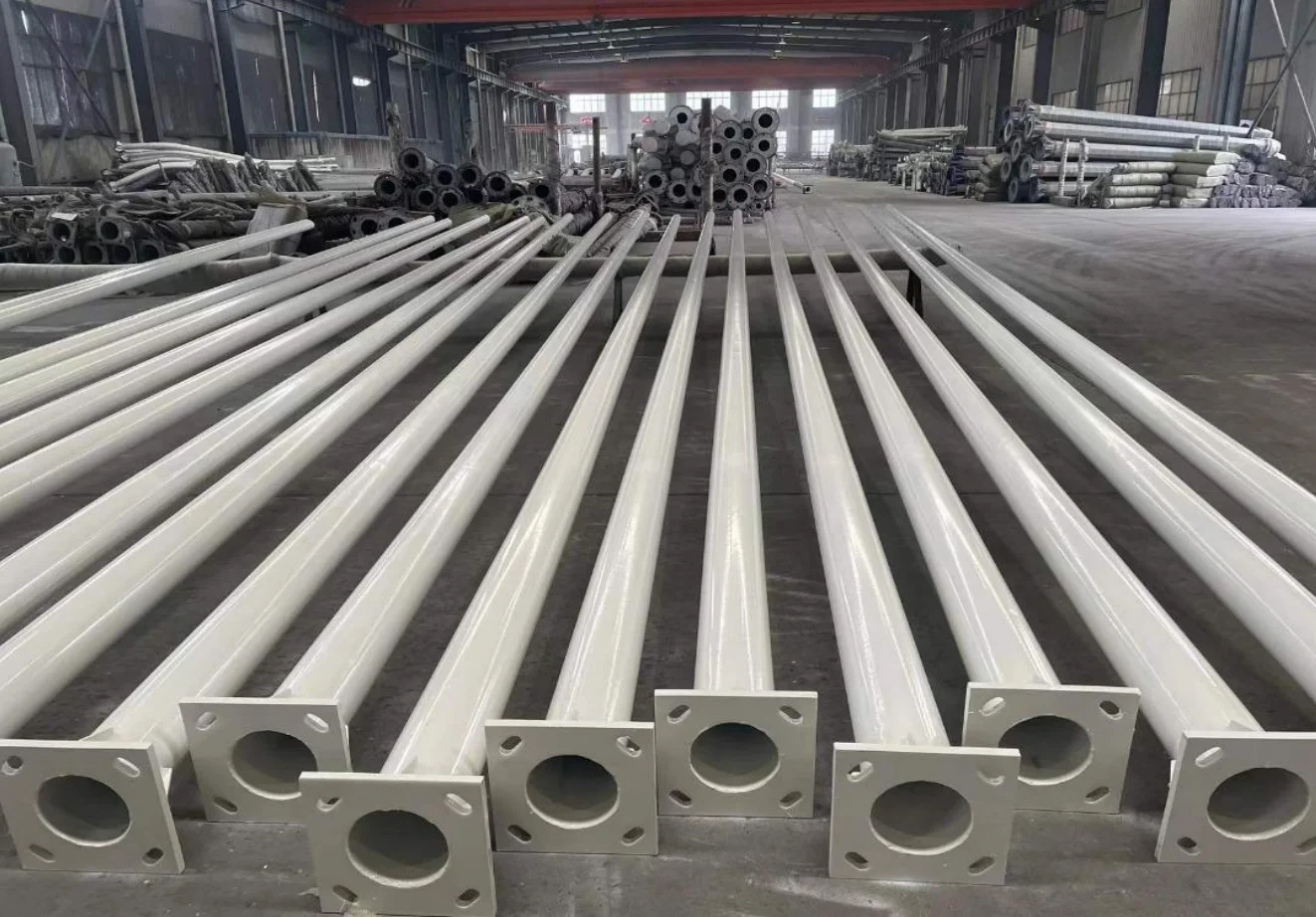

The galvanized surface is an important feature of a GI Conical Pole because outdoor steel structures require protection against corrosion.
Depending on the project specification, an appropriate galvanizing process may be applied to the steel pole. If hot-dip galvanizing is specifically required, the manufacturing specification should clearly identify the process and required coating characteristics.
Good fabrication, welding and finishing are also important for the overall quality of a conical pole.
United Electronics can supply project-based pole configurations according to customer-provided technical requirements.
A lighting pole should be considered as part of a complete structural system. The pole shaft, base plate, anchor bolts and concrete foundation work together to support the installed equipment.
Base plate dimensions and thickness should be selected according to the pole configuration and structural requirements. Anchor bolt diameter, quantity and arrangement should also correspond to the approved design.
Foundation requirements can vary according to pole height, mounted equipment, soil conditions and structural loading.
For tender projects, the supplied pole, base plate and mounting arrangement should correspond to the approved BOQ, drawings and technical specifications.
The Conical Pole GI 3mm in Bangladesh can be configured for a range of outdoor lighting applications, including LED street lighting, solar street lighting, roads, industrial facilities, commercial areas, residential developments, institutions, parking areas and infrastructure projects.
Different projects require different specifications. Customers can provide the required pole height, top and bottom dimensions, quantity, base plate specification, mounting arrangement and other technical details.
For tender requirements, customers can also provide BOQ documents or drawings so that the required pole configuration can be identified correctly.
Conical Pole GI 3mm Price in Bangladesh depends on the complete product specification. Important pricing factors include pole height, steel grade, top and bottom dimensions, total steel requirement, base plate specification, galvanizing, lighting arm or bracket, accessories and order quantity.
For this reason, there is no single price applicable to every 3mm GI conical pole. Two poles with the same 3mm wall thickness can have different prices when their heights, dimensions, base plates or accessories are different.
Customers can provide their required specifications and quantity to United Electronics for an accurate project-based quotation.
United Electronics supplies solar lighting, street lighting and related electrical products for different projects in Bangladesh. Our product range includes GI conical poles, octagonal poles, high mast poles, solar street lights, LED and AC street lights, solar panels, lithium and LiFePO4 batteries, MPPT and PWM solar charge controllers, solar inverters and related accessories.
Compare our conical pole range when selecting the mounting arrangement for your project. Confirm dimensions and accessories against the installation drawing.
For general renewable energy information in Bangladesh, visit SREDA. This reference does not imply product certification.
